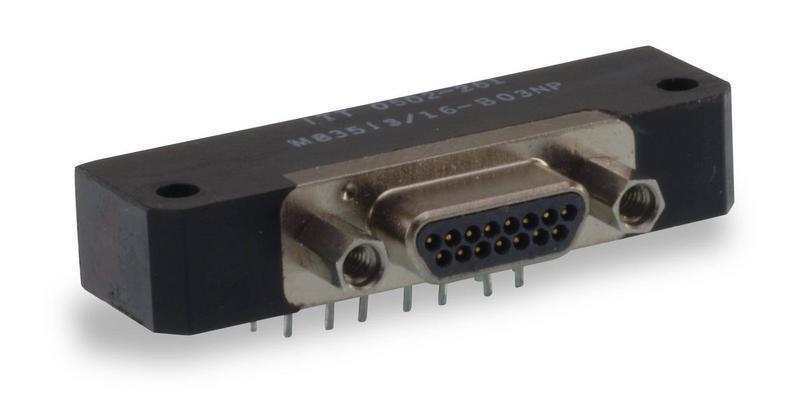

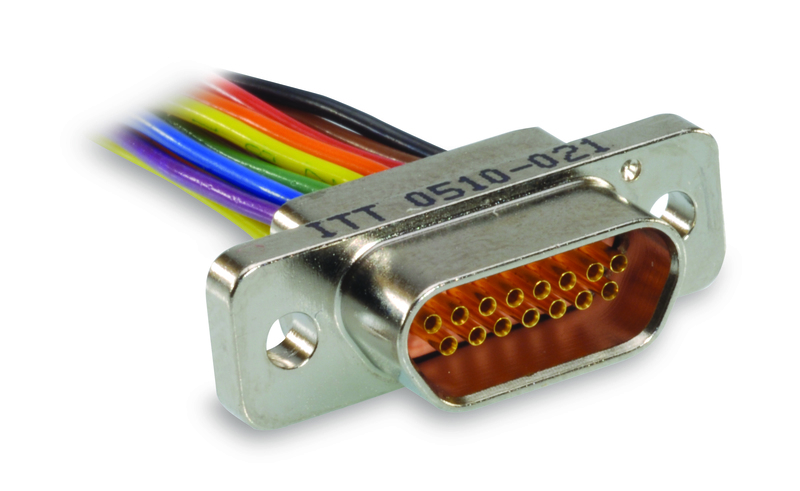

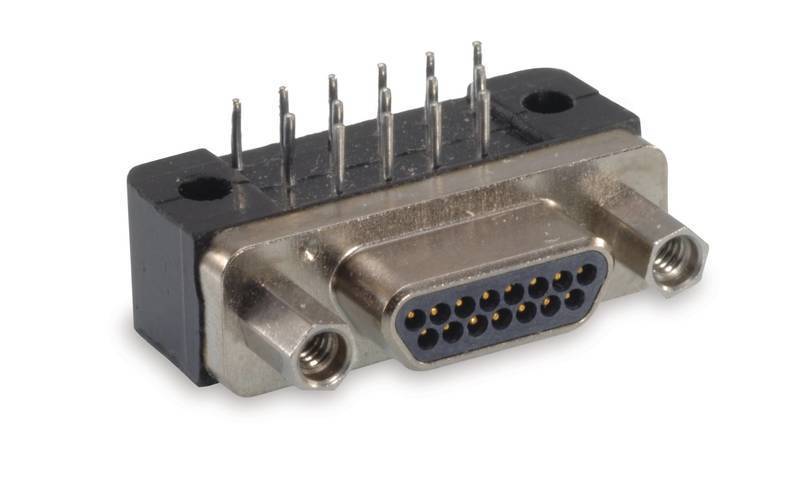

MIL-DTL-83513 Series Microminiature Connectors

P/N
M83513
Application field
항공부문, 우주부문, 방산부문, 일반산업부문
Maker
ITT Cannon
File1

주요 특징
• MIL-DTL-83513 사양에 따라 설계
• 0.050” 접점 간격
• 500회 체결 수명
• 푸시-풀 하드웨어 옵션: 토크가 필요 없고 체결 시 정렬 불량 및 흔들림을 최소화



Specification

Operating Voltage 400 VAC
Current Rating 3A
Number of Signal Contacts (Min/Max) 9, 15, 21, 25, 31, 37, 51, 100
Gauge Wire Size

AWG 24 thru AWG 32
Shape D Shape
Shell Style Straight Flange mount Plug, Straight Flange mount Receptacle
Durability 500 Mating Cycles
Power & Signal In Same Layout Yes
Contact Style / Termination Factory terminated wire, Solder pots
Shell Aluminum Alloy
Shell Plating Electroless Nickel, Yellow Chromate/Cadmium over nickel,
Gold over Nickel, Irridite/Alodine or Black anodize
Insulator Liquid Crystal Polymer (LCP) per MIL-M-24519,
Type GLCP-30F (9-100), Glass filled diallyl phthalate per MIL-M-14, Type SDGF (7*2 and 24*4), Polyphenylene sulfide per MIL-M-24519, Type GST-40F (16*5), Polyester per MIL-M-24519, Type GPT-30F (10*10)
Contact Copper alloy
Contact Plating Gold
Sealing N/A
Operation Temperature -55°C to +125°C (+200°C)
