주요 특징

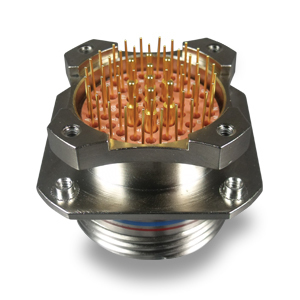

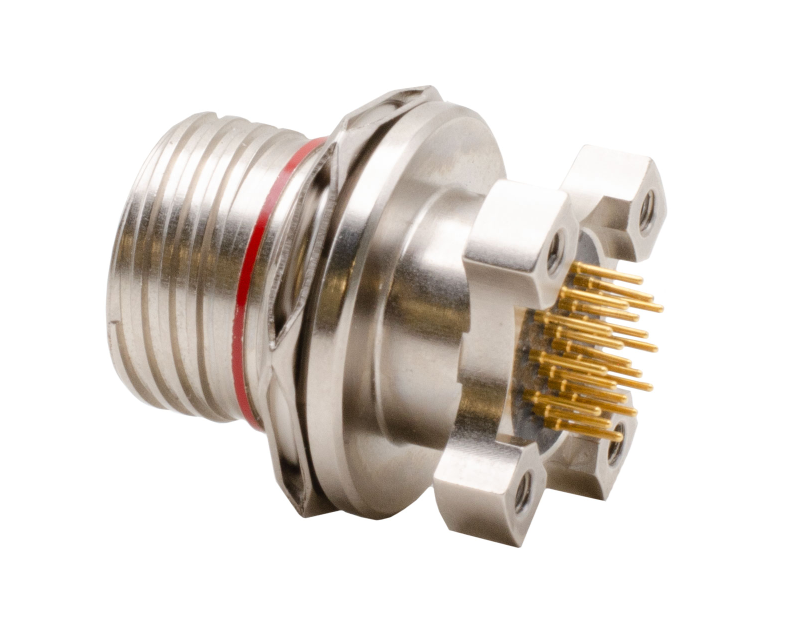

• 이중 플랜지 리셉터클이 편리한 PCB 부착 방식 제공
• 표준 길이 PCB 접촉부와 함께 사용하도록 설계됨
• 리셉터클은 38999 스타일 시리즈 III 플러그와 호환

Specification

Operating Voltage	N/A
Current Rating	up to 23A
Number of Signal Contacts (Min/Max)	3-128
Gauge Wire Size	12-28 AWG
Industry #	Designed according to Mil-Spec 38999
Shape	Circular
Shell Style	KJBD0, Double flange wall mount receptacle shell
Durability	500 Mating Cycles
Power & Signal In Same Layout	Yes
Contact Style / Termination	Crimp, PCB
Shell	Aluminum Alloy
Shell Plating	Olive Drab Cadmium, Electroless Nickel, Black Zinc Nickel
Insulator	High Grade Thermoplastic
Contact	Gold
Contact Plating	Silicone Based Elastomer
Sealing	N/A
Operation Temperature	-65°C to +200°C
