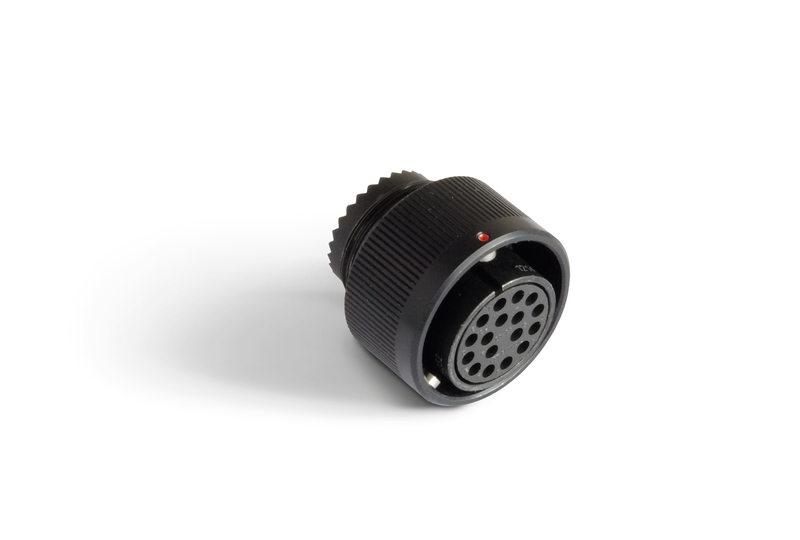

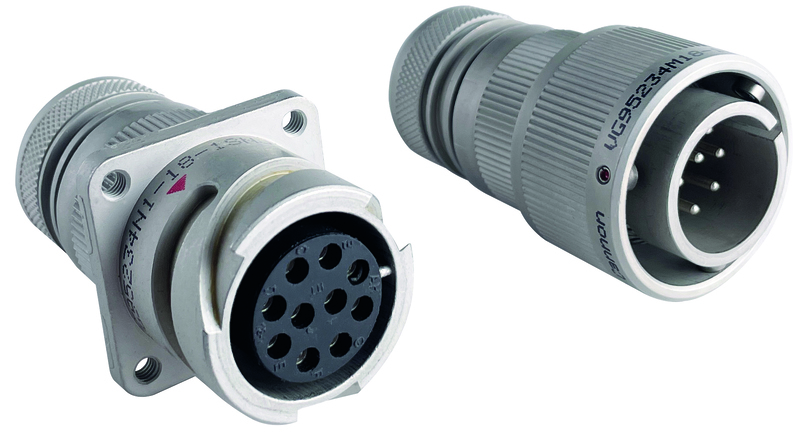

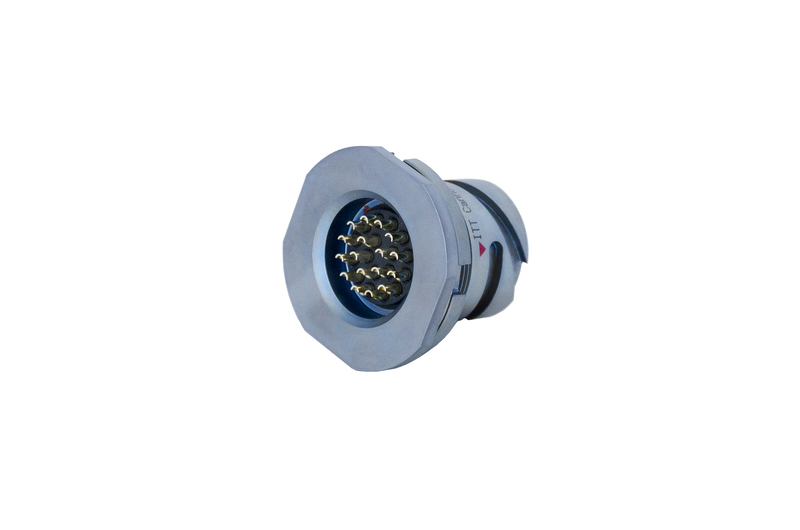

CA Bayonet Connectors

P/N
VG95234
Application field
항공부문, 방산부문, 일반산업부문
Maker
ITT Cannon
File1

특징
• VG95234 인증
• 신뢰받는 베이오넷 결합 설계
• 열악한 환경에서 사용 가능한 견고한 설계
• 극한의 충격 및 진동 저항
• 우수한 차폐 성능
• 다양한 쉘 크기, 레이아웃 및 액세서리 제공
• ITT Cannon의 글로벌 파트너 네트워크를 통해 짧은 납기로 제공 가능
• RoHS 준수 도금 옵션 제공
• 카드뮴 대체를 위한 VG 승인 유일 옵션 (A239)
• ITT Cannon의 독자적인 Blue Generation 도금 (A240)



Specification

Coupling Mechanism Reverse Bayonet
Shell Sizes #10SL to #36
Number of Layouts 140
Housing

Robust Aluminium
Insulators Polychloroprene or FKM (up to 180° C)
Contact types Crimp, solder and PCB. Silver / gold plated
Keying Mechanical keying options
Styles Cable to cable, cable to box, wall mount, PCB
Contact Sizes AWG 26 to 0 or 0.14 to 50 mm2
Max Current up to 250A @ 60° C ambient temperature
Shell platings - Cadmium (A66), VG approved, 500h
salt spray, highly conductive
- ZnCo black (A239) RoHS, VG approved,
48h salt spray, highly conductive
- ZnNi Blue Generation blue grey (A240)
RoHS, 500h salt spray, highly conductive
- ZnCo black (A232) RoHS, 200h salt spray
- ZnCo green (A233) RoHS, 200h salt
spray, highly conductive
Sealing Up to IP69k
Options Backshells for PG, ME, shrink boot, conduit and
cable clamp versions.
Shielded, straight and 90° variants + further
special versions
Accessories Dust caps, Dummy receptacles
Approvals VG95234
