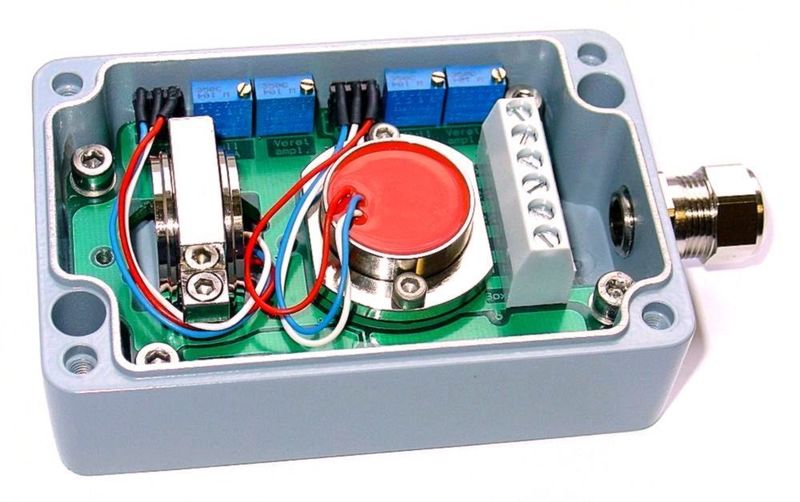

INCLINOMETER / 경사센서

P/N
SB2I
Application field
일반산업부문
Maker
SEIKA
File1

Technical Specifications

Terminals max.: 6 x 1.5 mm2
Cable fixing M12 x 1.5 cable gland, clamping range 6 to 7.5mm
Measuring range, Resolution, etc. dependents on implemented SEIKA sensor
Protection IP 67
Mounting orientation any
Measuring planes (N.. sensor) 3 main housing planes
Measuring directions (B.., BD.. sensors) in X,Y,Z coordinate of housing
Terminal voltage 10V to 30V
Minimum loop current 2.5mA to 3.5mA
Maximum loop current 22mA to 26mA
Output signal loop current 4-20mA (12mA for sensor zero position)
Adjustable variables zero point (12mA), amplification
Maximum load resistance 500 Ohm (at 24 Volt supply voltage)
Low pass filter active, 3rd order, minimal ripple
Operating temperature -40 to +85°C
