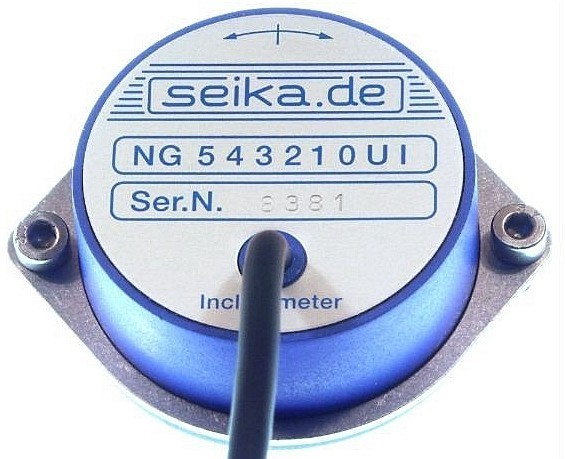

INCLINOMETER / 경사센서

P/N
NGI
Application field
일반산업부문
Maker
SEIKA
File1

Technical Specifications

Type NG2I NG3I NG4I
Measuring range ±10 degrees ±30 degrees ±80 degrees
Resolution <0.001 degrees <0.003degrees  <0.01degrees
Standardized sensitivity 0.8mA/degree 0.266mA/degree 0.1mA/degree
Dimensions see dimension drawing of data sheet
Linearity deviation  <1·10-3F.S.
Transverse sensitivity <0.5% at 45° tilt
Settling time  approx. 0.3 seconds (1s, 2s, 3s optional)
Temperature drift of sensitivity approx. ±0.01% / K
Temperature drift of zero point approx. ±10-3 degrees / K
Terminal voltage 10V ... 30V either polarity!
Output current offset for sensor zero position 12mA
Protection IP 65
Operating Temperature Range -40°C to +85°C
Storage Temperature Range -45°C to +90°C
Weight (without clamping ring or cable) approx. 110 grams
Standard electrical connection 0.5m shielded cable Ø4.6mm, 2-wires
different cable lengths optional
