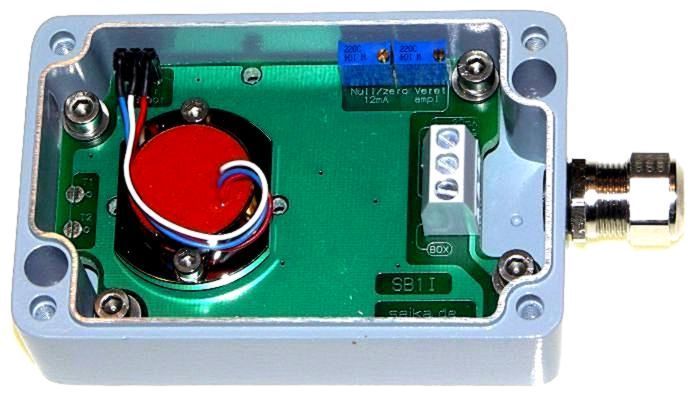

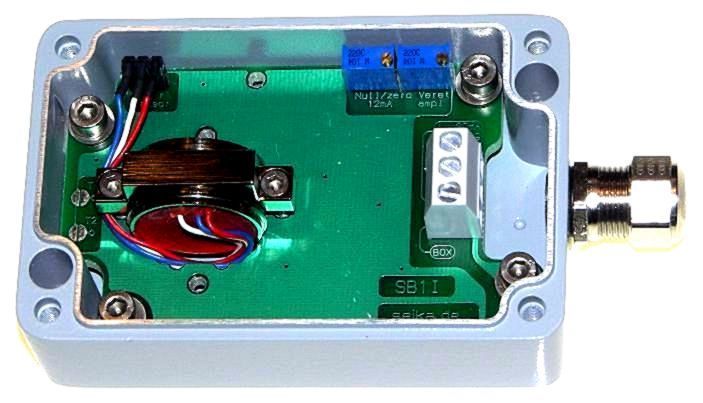

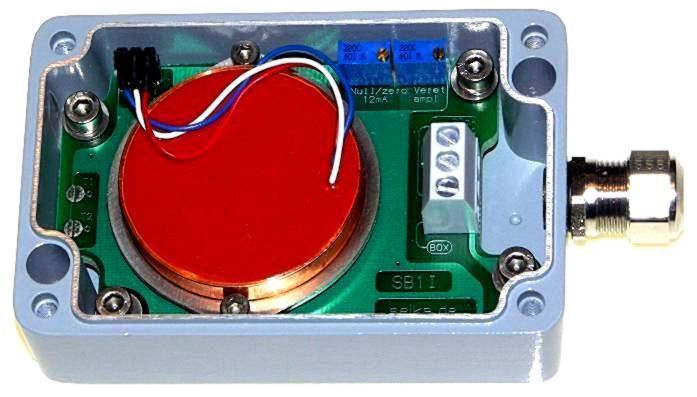

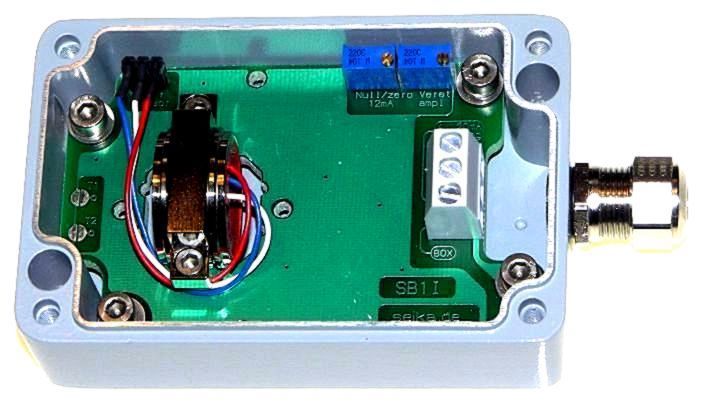

INCLINOMETER / 경사센서

P/N
SB1I
Application field
일반산업부문
Maker
SEIKA
File1

Technical Specifications

Terminals max.: 3 x 1.5 mm2
Cable fixing M12 x 1.5 cable gland, clamping range 6 to 7.5mm
Measuring range, Resolution, etc. dependents on implemented SEIKA sensor
Protection IP 65
Mounting orientation any
Measuring planes (N.. sensor) 3 main housing planes
Measuring plane (NG.. sensor) parallel to bottom of housing
Measuring directions (B.., BD.. sensor) X,Y,Z coordinates of housing
Terminal voltage 10V to 30V
Minimum loop current 2.5mA to 3.5mA
Maximum loop current 22mA to 26mA
Output signal loop current 4-20mA (12mA for sensor zero position)
Adjustable variables zero point (12mA), amplification
Maximum load resistance 500 Ohm (for 24 Volt supply voltage)
Operating temperature -40 to +85°C
