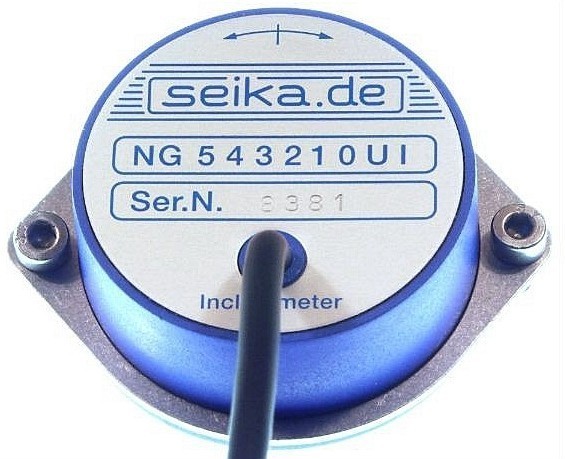

INDUSTRIAL SENSOR

◀

▶

File1

Technical Specifications

Measuring range	360 degrees
Resolution	0.01 degrees
Dimensions	see dimension drawing of data sheet
Linearity deviation	±0.25 degrees
Transverse sensitivity	< ±0.1 degree at 45° tilt
Settling time	approx. 0.3 seconds
Supply voltage U_b	9V ... 15V
Current drawn	approx. 40mA
Protection	IP 65
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-45°C to +90°C
Weight (without clamping ring or cable)	approx. 110 grams
Electrical connection	2m shielded cable Ø 4.6 mm
