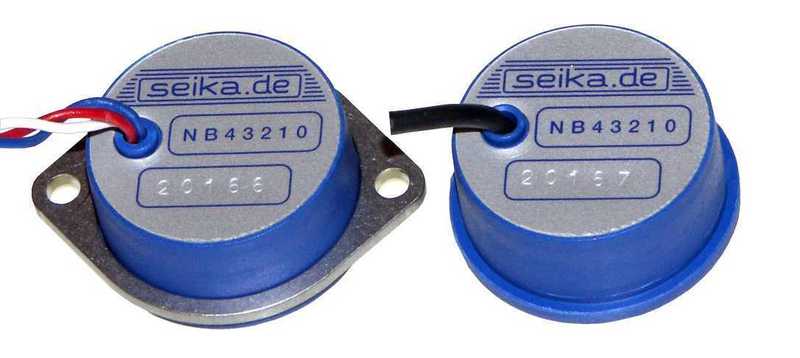

INCLINOMETER / 경사센서

P/N
N3
Application field
일반산업부문
Maker
SEIKA
File1

Technical Specifications

Measuring range ±30 degrees
Resolution <0.005 degrees
Sensitivity approx. 6mV/degree
Dimensions see dimension drawing of data sheet
Linearity deviation  0.2% of measuring range
Transverse sensitivity <1% at 30° tilt
Settling time  <0.3 seconds
Temperature drift of sensitivity -0.12% / K
Temperature drift of zero point <±0.025mV/K
Supply voltage Ub (regulated) 5 Volt
Output impedance 10 kOhm
Current drawn at Ub = 5V  approx.1mA
Protection IP 65
Operating Temperature Range -40°C to +85°C
Storage Temperature Range -45°C to +90°C
Weight (in metal housing without cable)  18,5 grams
Standard electrical connection 3 highly flexible, color-coded wires ø1mm,
length approx. 18 cm
Values for analog DC output at UbN = 5 Volt
