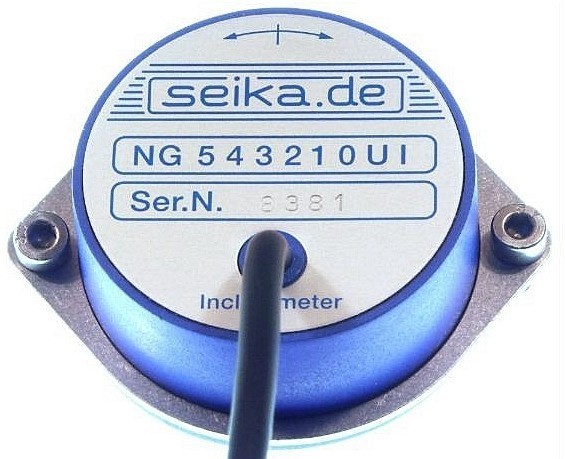

INCLINOMETER / 경사센서

P/N
NG2U
Application field
일반산업부문
Maker
SEIKA
File1

Technical Specifications

Measuring range ±10 degrees
Resolution <0.001 degrees
Standardized sensitivity 200mV / degree
Dimensions see dimension drawing of data sheet
Linearity deviation  <1·10-3F.S.
Transverse sensitivity <0.5% at 45° tilt
Settling time  approx. 0.3 seconds (1s, 2s, 3s optional)
Temperature drift of sensitivity <-0.01% / Kelvin
Temperature drift of zero point <±10-3 degrees / K
Supply voltage Ub 9V ... 30V (optional 5V, regulated)
Output voltage offset for sensor zero position 2.5 Volt
Current drawn  approx.5mA
Protection IP 65
Operating Temperature Range -40°C to +85°C
Storage Temperature Range -45°C to +90°C
Weight (without clamping ring or cable) approx. 110 grams
Standard electrical connection 0.5m shielded cable Ø4.6mm,
4-wire  other lengths optional
