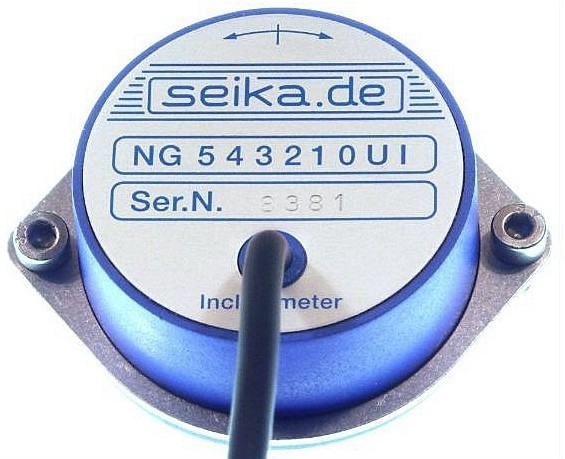

INCLINOMETER / 경사센서

P/N
NG3
Application field
일반산업부문
Maker
SEIKA
File1

Technical Specifications

Measuring range ±30 degrees
Resolution <0,003 degrees
Dimensions see dimension drawing of data sheet
Linearity deviation  <0.1% of measuring range
Transverse sensitivity <0.5% at 45° tilt
Sensitivity  approx.7mV/degree
Settling time  approx. 0.3 seconds
Temperature drift of zero point <0.01mV/K
Supply voltage UbN (regulated) 5V
Permissible supply voltage range Ubz  3 to 6V
Current drawn at Ub = 5V  approx.1mA
Output impedance 10 kOhm
Protection IP 65
Operating Temperature Range -40°C to +85°C
Storage Temperature Range -45°C to +90°C
Weight (without clamping ring or cable) approx. 110 grams
Electrical connection  0.5m shielded cable Ø 4.6mm
Values for analog DC output at UbN = 5 Volt
