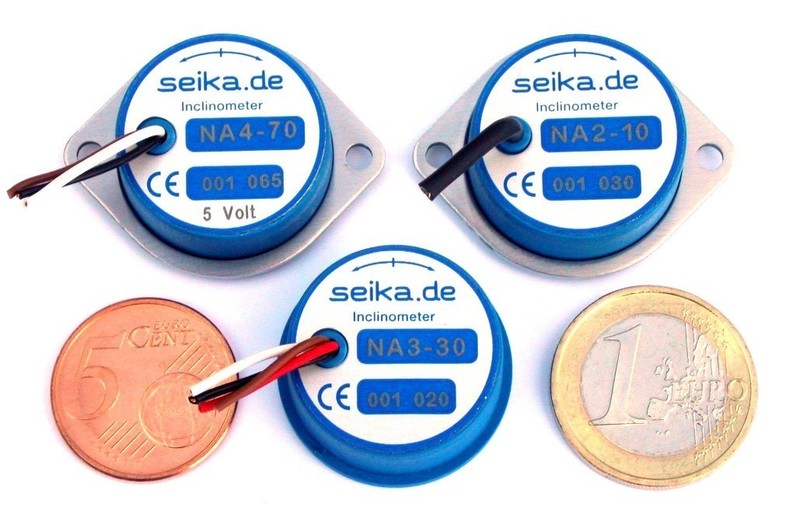

INDUSTRIAL SENSOR

◀

▶

File1

Technical Specifications

Measuring range	±5degrees
Resolution	<0.001degrees
Nominal sensitivity	400mV/degree
Dimensions	see dimension drawing of data sheet
Linearity deviation over whole measurement range	<±0.02degrees
Transverse sensitivity at 45° tilt	<1% of measurement value
Settling time (to 98% of the actual value)	<0.3 s
Temperature drift of zero point	±0.002degrees/Kelvin
Supply voltage ¹⁾	9V … 30V DC
Current drawn	ca. 2mA
Externally regulated supply voltage ²⁾	5 Volt
Current drawn with external supply voltage 5V	approx. 1mA
Output voltage range	2.5V±2V at ±5°
Reference voltage output ³⁾	5.00 Volt
Temperature drift of the reference voltage	< 25 ppm/K
Maximum current of the reference voltage output	5mA
Protection	IP 65
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-55°C to +90°C
Weight (Sensor excluding mounting ring and cable)	18.5 g
Terminals	3 (4) highly flexible cables, Øca.1mm, length 18cm
Terminals	optionally: shielded cable Ø2,1mm

Notes:

¹⁾ Standard supply voltage

²⁾ optional externally regulated supply voltage

³⁾ reference voltage output (+5,00 V) only optionally connected (for wire terminals only)
