AEROSPACE & DEFENSE

홈 AEROSPACE & DEFENSE Actuator
    ◀
    ▶

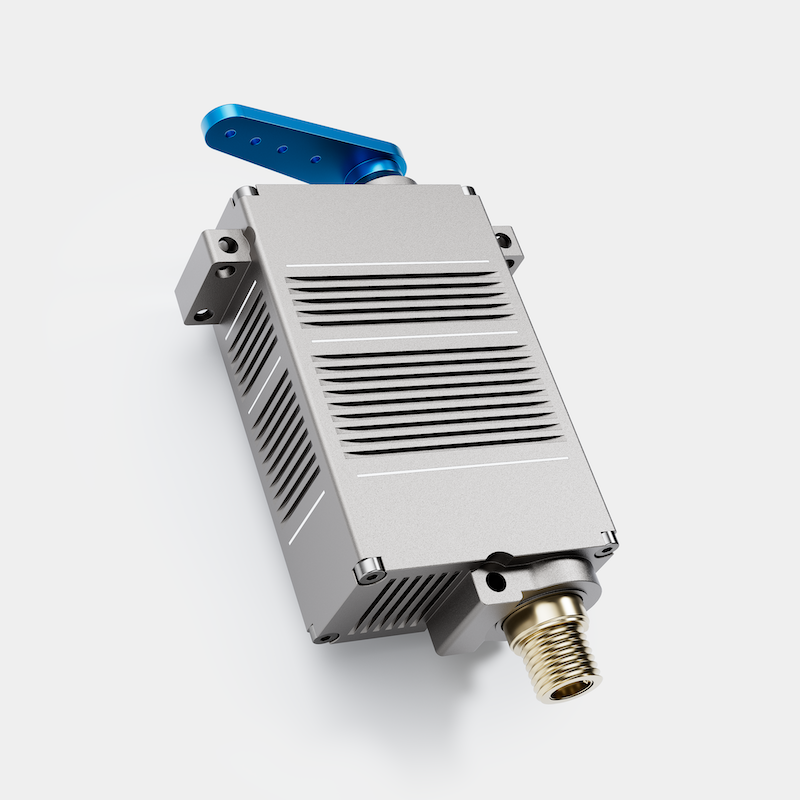

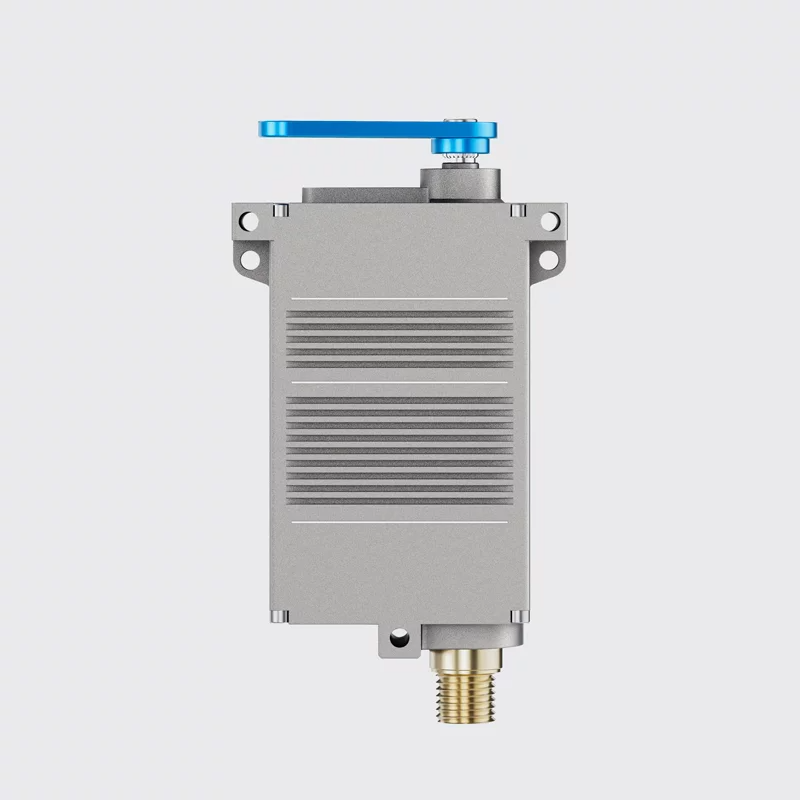

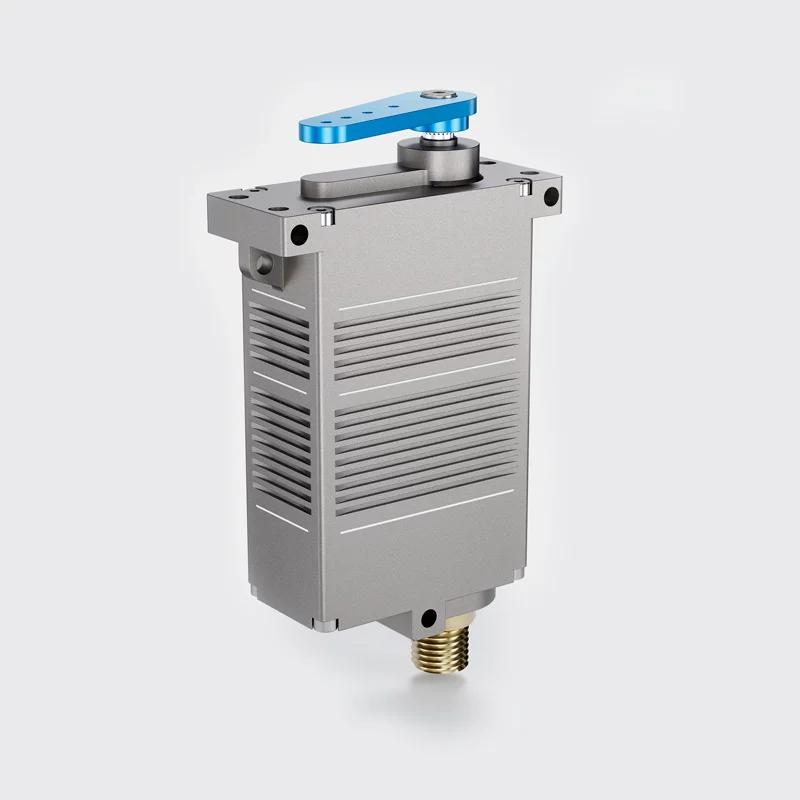

Standard Actuator

P/N
DA 22-BLDC
Maker
Volz Servos
File1
Width (Metric)      22 mm
Interface PWM, RS 485



Specifications

DA 22-12-3612...
Supply voltage (rated)      12 VDC
Rated Current 0.9 A
Peak Current 1.8 A
Rated Torque (Metric) 1.3 Nm
Peak Torque (Metric) 3 Nm
No Load Speed 280 °/s
Rated Speed 180 °/s



DA 22-30-3624...
Supply voltage (rated)      28 VDC
Rated Current 0.5 A
Peak Current 1.1 A
Rated Torque (Metric) 1.5 Nm
Peak Torque (Metric) 3.5 Nm
No Load Speed 320 °/s
Rated Speed 210 °/s
