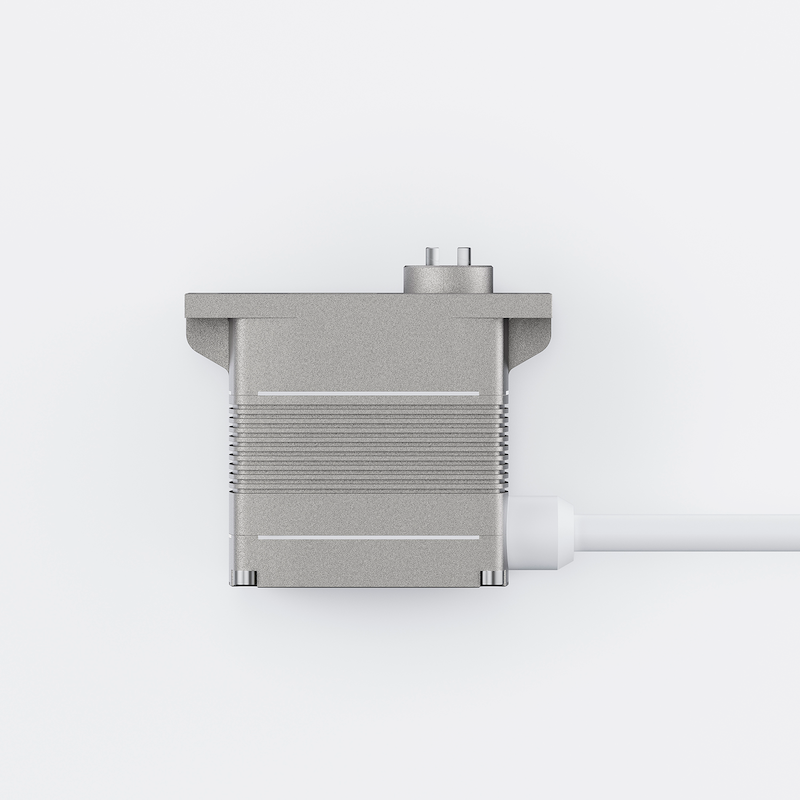

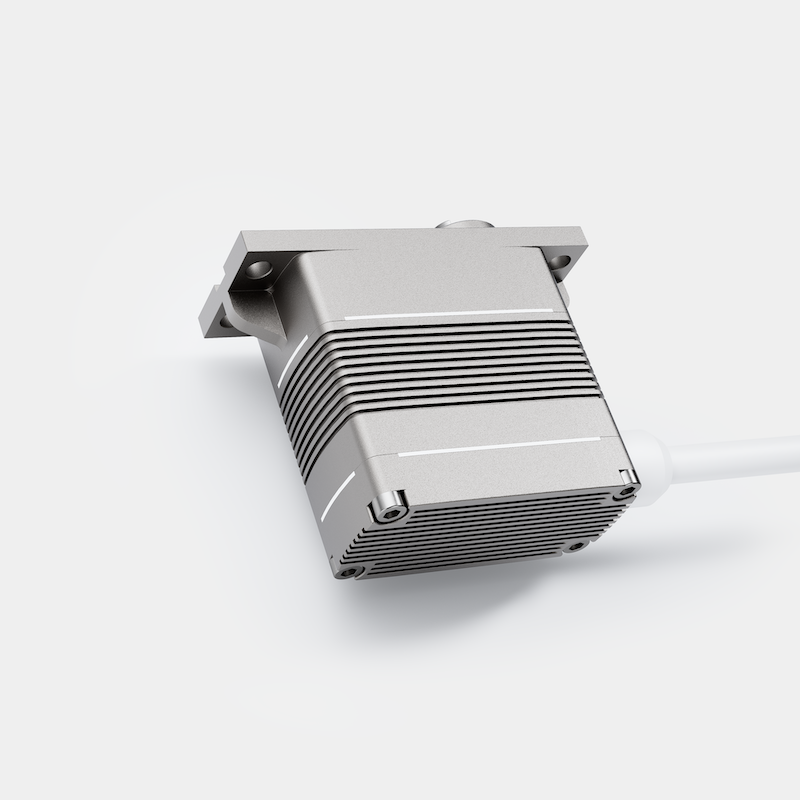

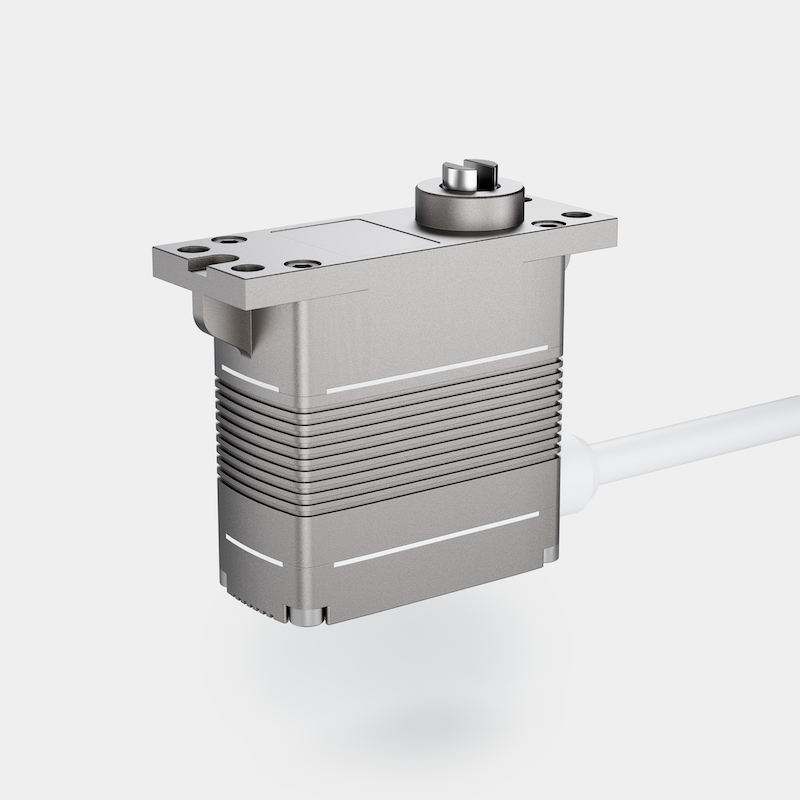

Standard Actuator

P/N
DA 15-T
Maker
Volz Servos
File1
Width (Metric) 15 mm
Peak Torque (Metric)         0.6 Nm
Interface PWM



Specifications

DA 15‐T‐06‐...
Supply voltage (rated)        6 VDC
Rated Current 0.5 A
Peak Current 1.5 A
Rated Torque (Metric) 0.16 Nm
No Load Speed 290 °/s
Rated Speed 235 °/s



DA 15‐T‐12‐...
Supply voltage (rated)        12 VDC
Rated Current 0.35 A
Peak Current 0.85 A
Rated Torque (Metric) 0.25 Nm
No Load Speed 330 °/s
Rated Speed 240 °/s
