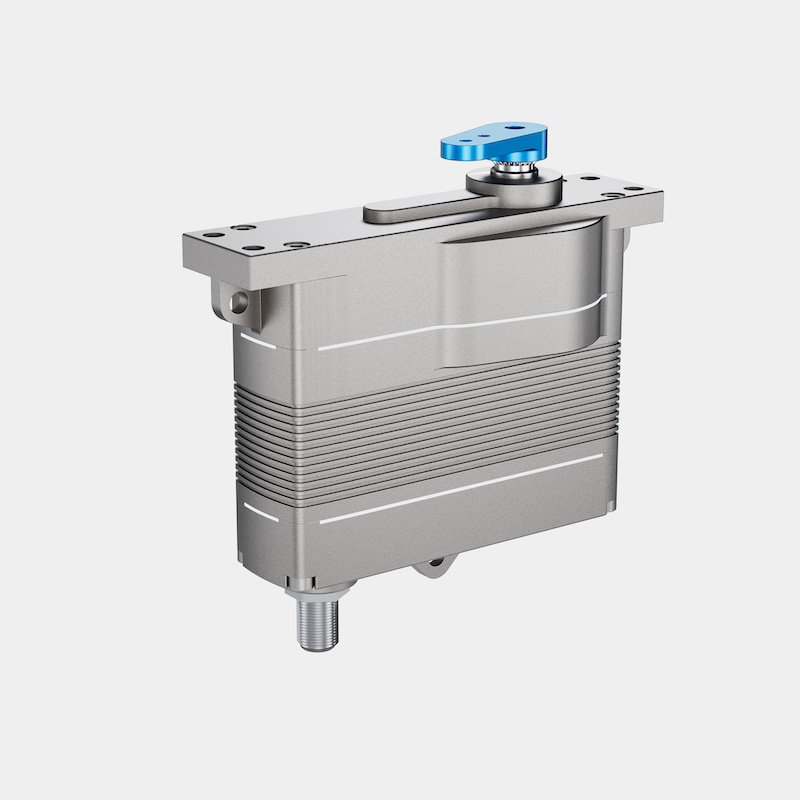

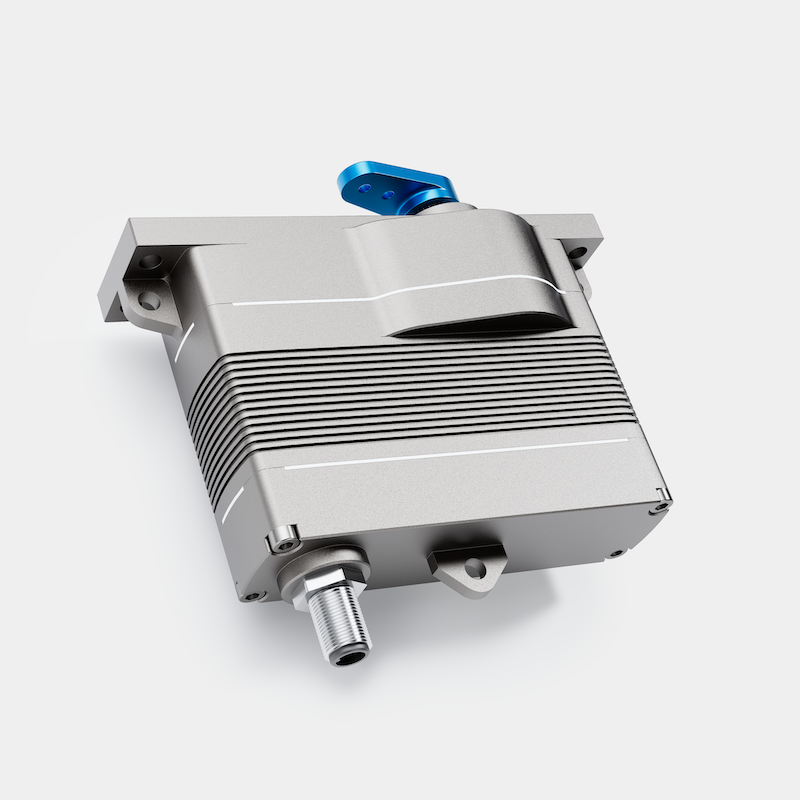

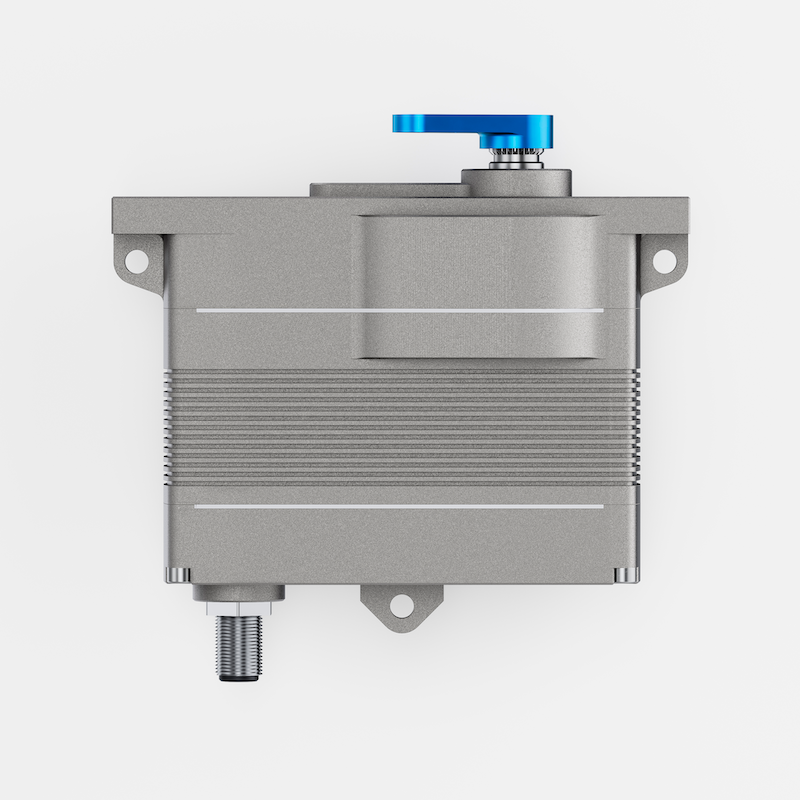

Standard Actuator

P/N
DA 15-N-HT
Maker
Volz Servos
File1
Width (Metric)     15 mm
Interface PWM, RS 485, CAN, Single Ended Serial



Specifications

DA 15‐N-HT-06
Supply voltage (rated)      6 VDC
Rated Current 0.45 A
Peak Current 0.85 A
Rated Torque (Metric) 0.6 Nm
Peak Torque (Metric) 1.5 Nm
No Load Speed 60 °/s
Rated Speed 45 °/s



DA 15‐N-HT-12
Supply voltage (rated)      12 VDC
Rated Current 0.3 A
Peak Current 0.6 A
Rated Torque (Metric) 0.6 Nm
Peak Torque (Metric) 1.5 Nm
No Load Speed 60 °/s
Rated Speed 45 °/s



DA 15‐N-HT-30
Supply voltage (rated)      28 VDC
Rated Current 0.15 A
Peak Current 0.3 A
Rated Torque (Metric) 0.6 Nm
Peak Torque (Metric) 1.5 Nm
No Load Speed 70 °/s
Rated Speed 55 °/s
