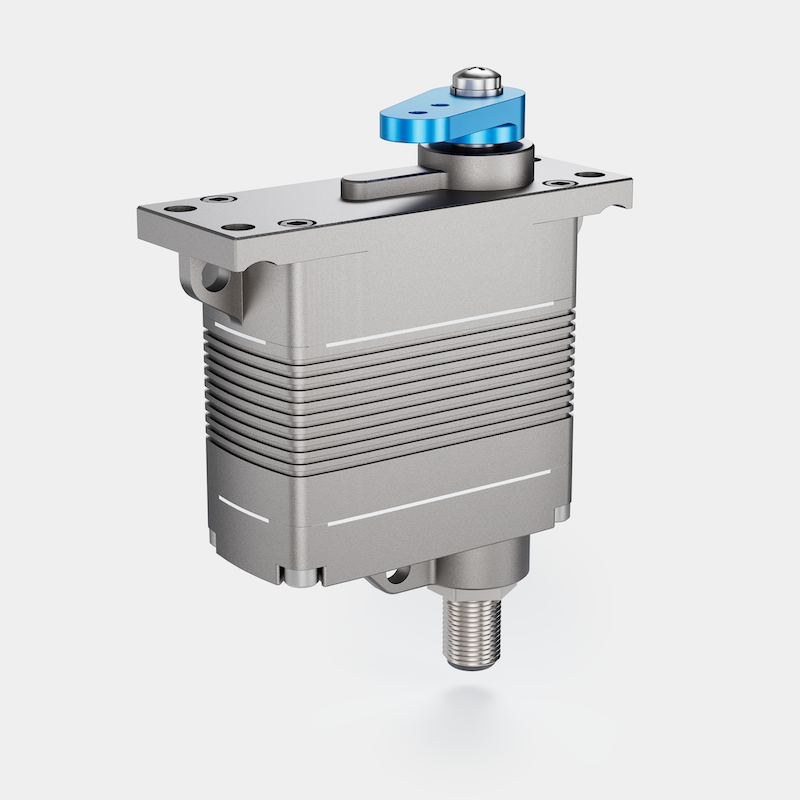

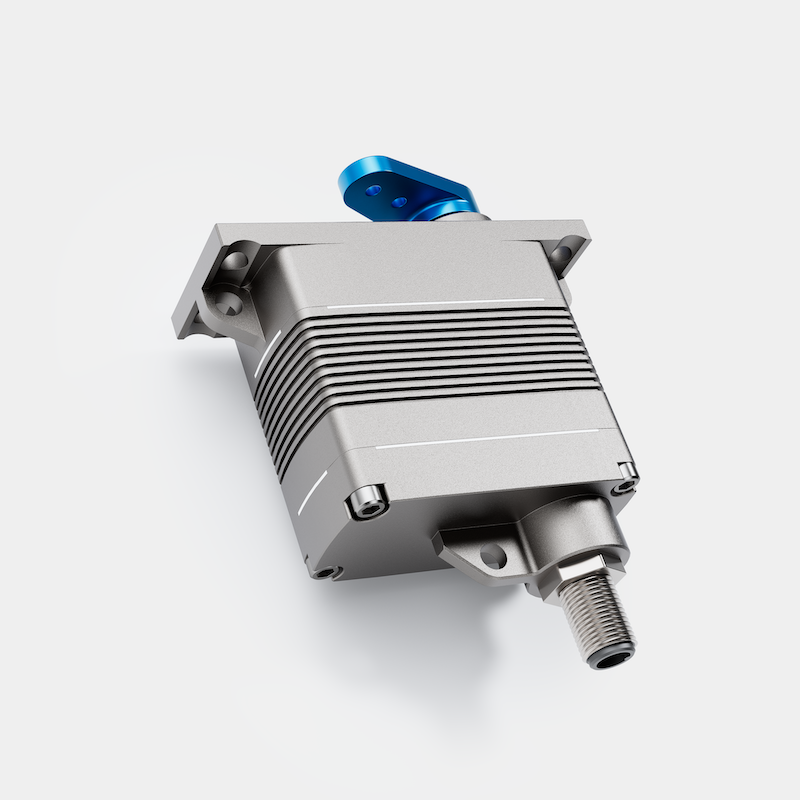

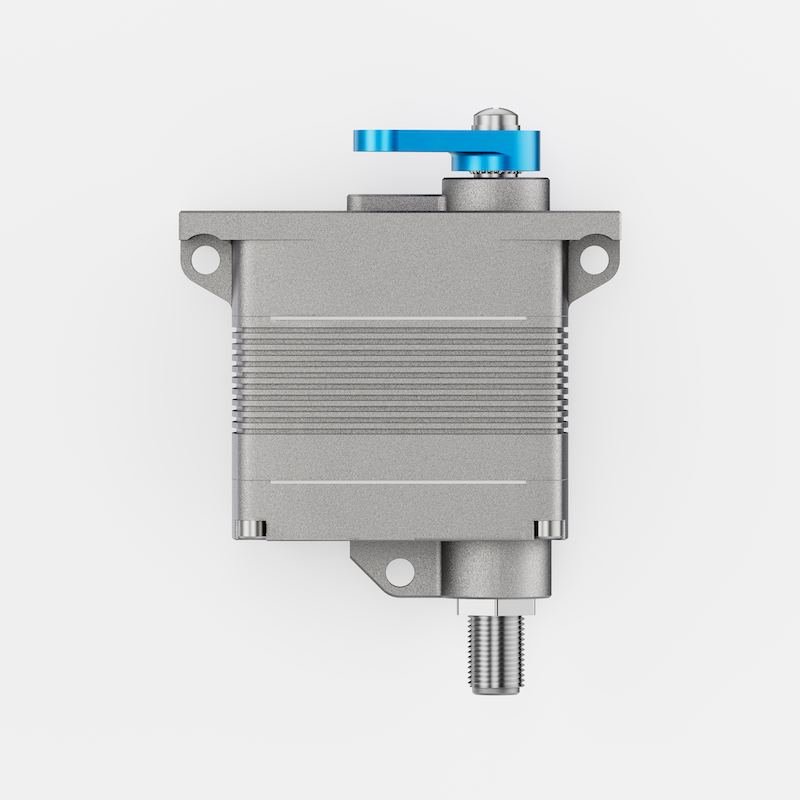

Standard Actuator

P/N
DA 15-N
Maker
Volz Servos
File1
Width (Metric)     15 mm
Interface PWM, RS 485, CAN, Single Ended Serial



Specifications

DA 15‐N-06-BLDC-...
Supply Voltage (rated)     6 VDC
Rated Current   0.5 A
Peak Current 1.5 A
Rated Torque (Metric)  0.16 Nm
Peak Torque (Metric)  0.6 Nm
No Load Speed 290 °/s
Rated Speed  235 °/s



DA 15‐N-12-BLDC-...
Supply Voltage (rated)     12 VDC
Rated Current   0.35 A
Peak Current 0.85 A
Rated Torque (Metric)  0.25 Nm
Peak Torque (Metric)  0.6 Nm
No Load Speed 330 °/s
Rated Speed  240 °/s



DA 15‐N-30-BLDC-...
Supply Voltage (rated)     28 VDC
Rated Current   0.2 A
Peak Current 0.45 A
Rated Torque (Metric)  0.25 Nm
Peak Torque (Metric)  0.6 Nm
No Load Speed 360 °/s
Rated Speed  260 °/s



DA 15-N-06-BLDC-32-…
Supply Voltage (rated)     6 VDC
Rated Current   0.5 A
Peak Current 1.5 A
Rated Torque (Metric)  0.11 Nm
Peak Torque (Metric)  0.4 Nm
No Load Speed 540 °/s
Rated Speed  410 °/s



DA 15-N-12-BLDC-32-…
Supply Voltage (rated)     12 VDC
Rated Current   0.35 A
Peak Current 0.85 A
Rated Torque (Metric)  0.18 Nm
Peak Torque (Metric)  0.4 Nm
No Load Speed 620 °/s
Rated Speed  415 °/s



DA 15-N-30-BLDC-32-…
Supply Voltage (rated)     28 VDC
Rated Current   0.2 A
Peak Current 0.45 A
Rated Torque (Metric)  0.18 Nm
Peak Torque (Metric)  0.4 Nm
No Load Speed 670 °/s
Rated Speed  450 °/s
