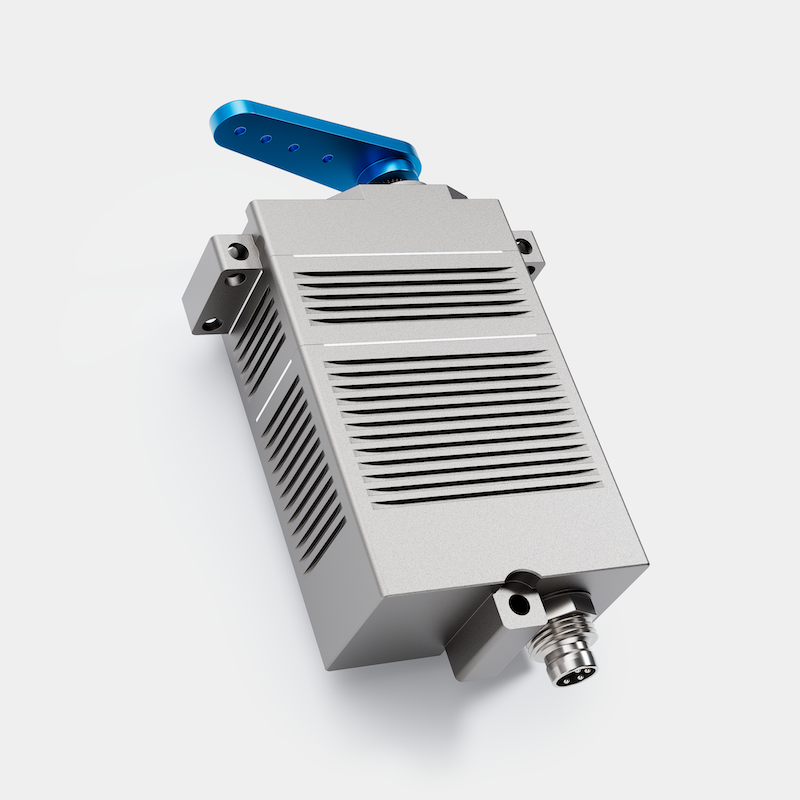

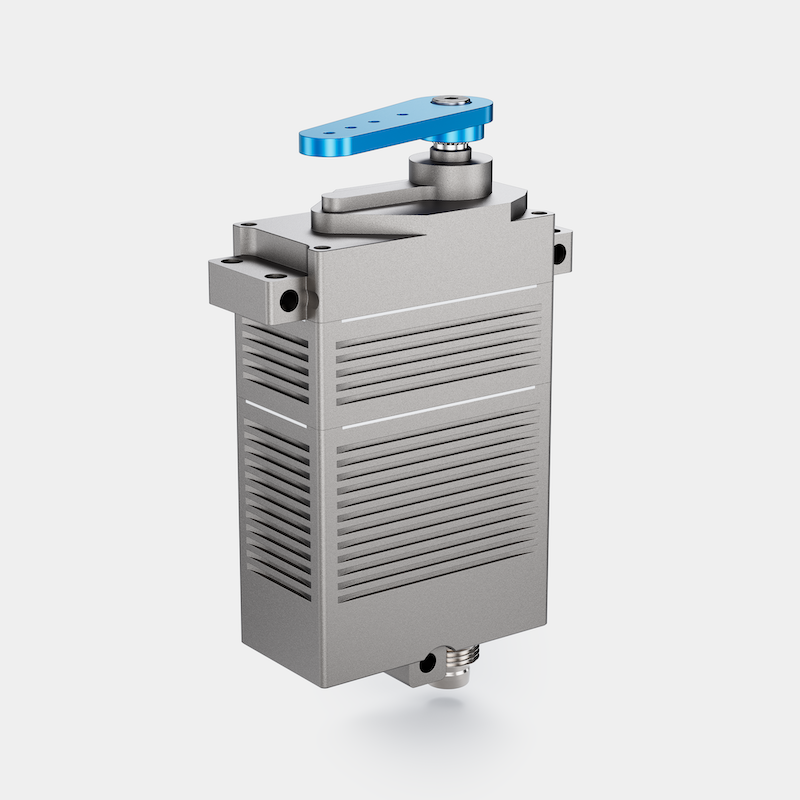

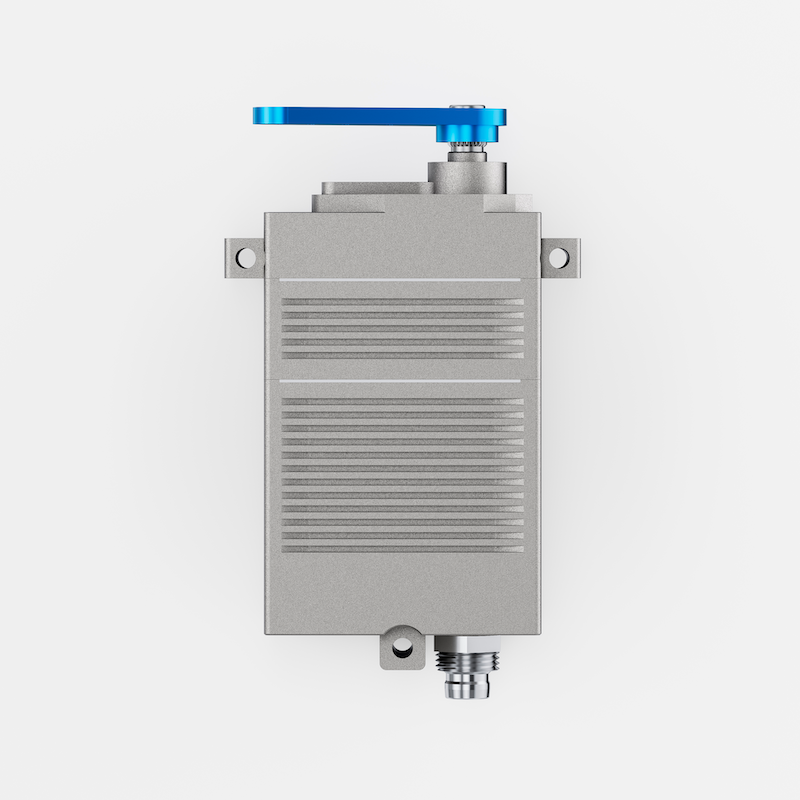

Standard Actuator

P/N
DA 22
Maker
Volz Servos
Width (Metric)     22 mm
Interface PWM, RS 485



Specifications

DA 22-12-2615...
Supply voltage(rated) 12 VDC
Rated Current 0.4 A
Peak Current 0.8 A
Rated Torque(Metric)     0.8 Nm
Peak Torque(Metric)   1.6 Nm
No Load Speed   210 °/s
Rated Speed   120 °/s



DA 22-12-4112...
Supply voltage(rated) 12 VDC
Rated Current 0.75 A
Peak Current 1.7 A
Rated Torque(Metric)     1.2 Nm
Peak Torque(Metric)   3 Nm
No Load Speed   250 °/s
Rated Speed   180 °/s



DA 22-30-2630…
Supply voltage(rated) 28 VDC
Rated Current 0.18 A
Peak Current 0.3 A
Rated Torque(Metric)     0.7 Nm
Peak Torque(Metric)   1.5 Nm
No Load Speed   240 °/s
Rated Speed   160 °/s



DA 22-30-4128…
Supply voltage(rated) 28 VDC
Rated Current 0.35 A
Peak Current 0.6 A
Rated Torque(Metric)     1.8 Nm
Peak Torque(Metric)   3.0 Nm
No Load Speed   180 °/s
Rated Speed   110 °/s
