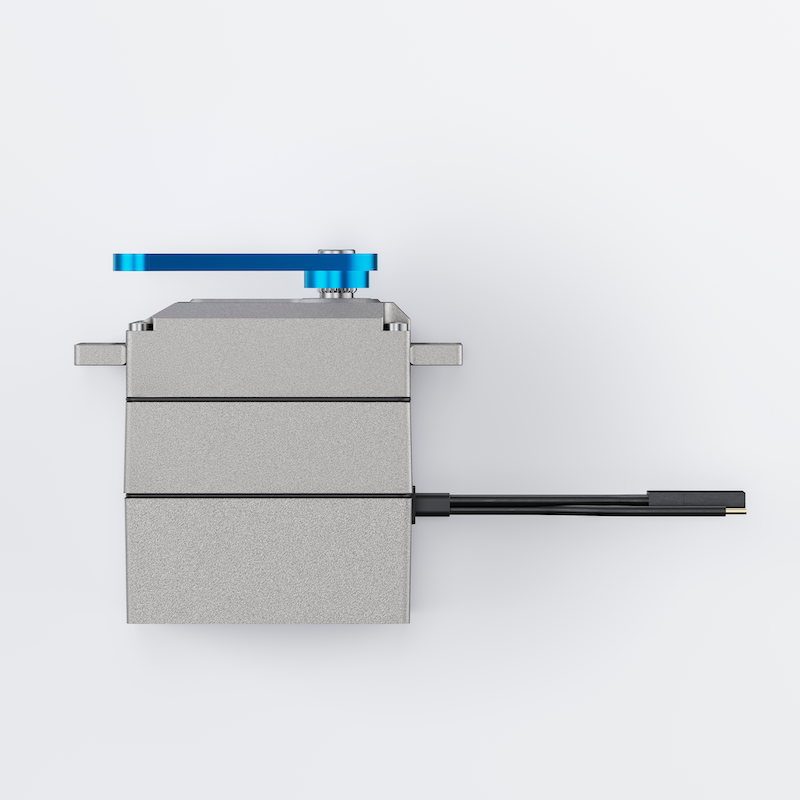

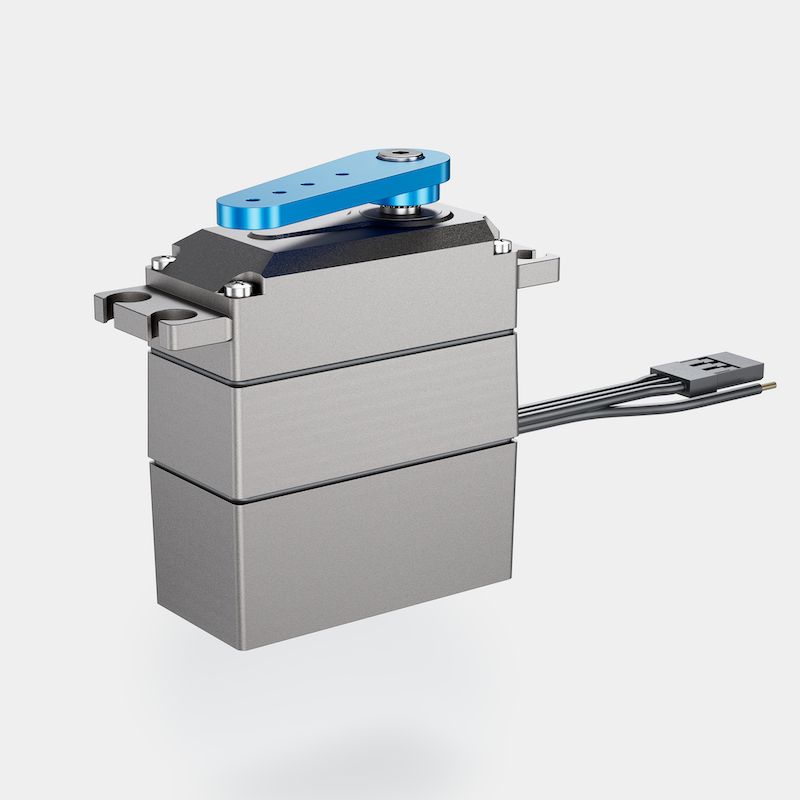

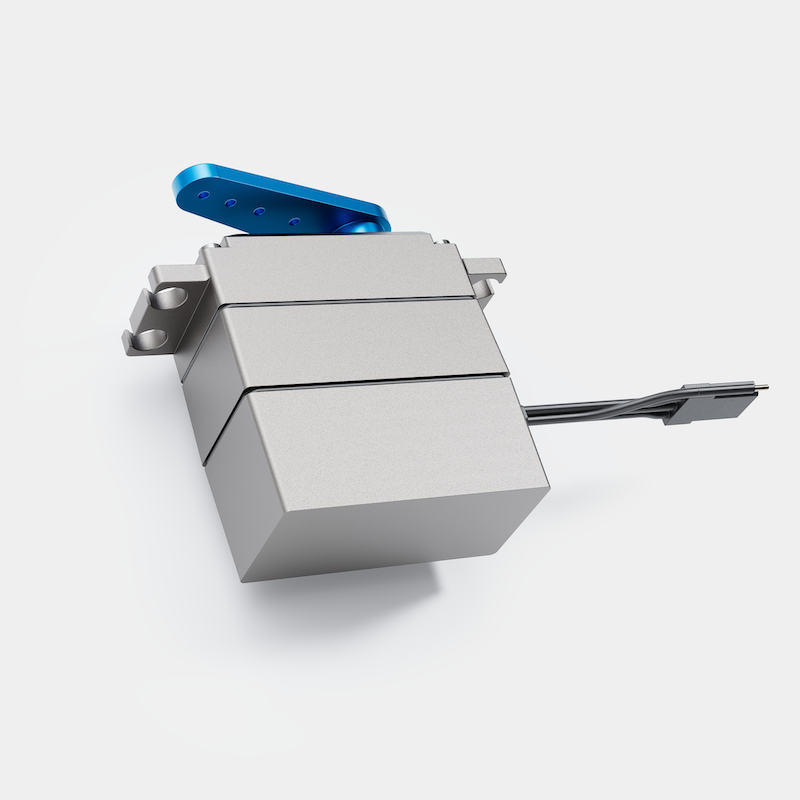

Standard Actuator

P/N
DA 20
Maker
Volz Servos
File1
Width (Metric)     20 mm
Interface PWM



Specifications

DA 20-06-2503...
Supply voltage(rated) 6 VDC
Rated Current 0.8 A
Peak Current 3.0 A
Rated Torque(Metric)     0.22 Nm
Peak Torque(Metric)   1.1 Nm
No Load Speed   520 °/s
Rated Speed   490 °/s



DA 20-06-2505...
Supply voltage(rated) 6 VDC
Rated Current 0.6 A
Peak Current 2.3 A
Rated Torque(Metric)     0.3 Nm
Peak Torque(Metric)   1.5 Nm
No Load Speed   320 °/s
Rated Speed   280 °/s



DA 20‐12‐2515…
Supply voltage(rated) 12 VDC
Rated Current 0.45 A
Peak Current 0.8 A
Rated Torque(Metric)     0.8 Nm
Peak Torque(Metric)   1.6 Nm
No Load Speed   210 °/s
Rated Speed   130 °/s



DA 20‐30‐2515…
Supply voltage(rated) 28 VDC
Rated Current 0.3 A
Peak Current 0.6 A
Rated Torque(Metric)     0.5 Nm
Peak Torque(Metric)   1.2 Nm
No Load Speed   520 °/s
Rated Speed   400 °/s



DA 20‐30‐2530…
Supply voltage(rated) 28 VDC
Rated Current 0.2 A
Peak Current 0.3 A
Rated Torque(Metric)     0.7 Nm
Peak Torque(Metric)   1.5 Nm
No Load Speed   240 °/s
Rated Speed   160 °/s
