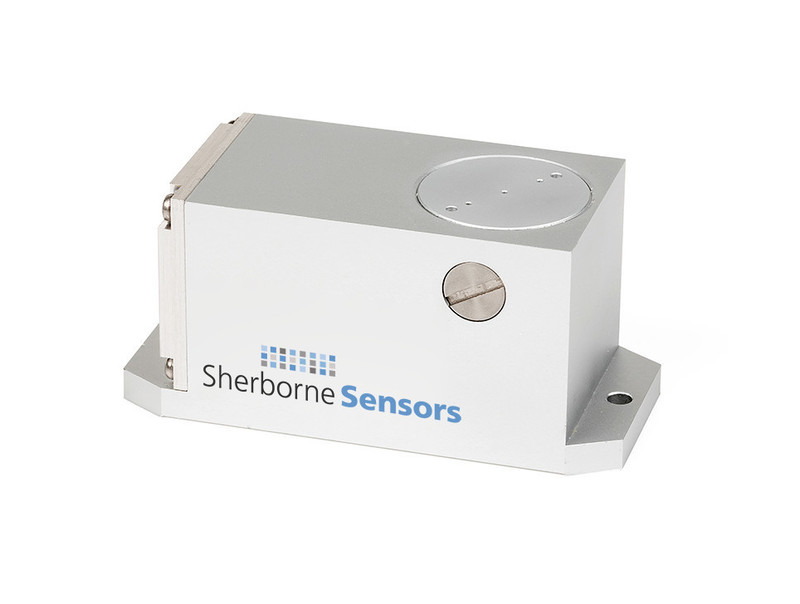

LSO Series (Single Axis / 4-20mA)

LSO는 고정밀 중력 기준 서보 경사센서로 다양한 산업 및 군사 응용 분야에 사용됩니다.
낮은 임피던스 출력 신호에도 다양한 각도 범위에서 모델을 사용할 수 있습니다. 6-Way bayonet lock connector (LSOC) 또는 Solder pins (LSOP)를 통해 이루어집니다.

Features

• Available ranges from ±1° to ±90°
• Resolution to 0.1arc second (0.00003°)
• High level 4 to 20mA output proportional to sine of the angle of tilt
• Electrical terminations via six-way connector (LSOC) or solder pins (LSOP)
• Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
• Environmentally sealed to IP65
• Continuous operation in temperatures of -18°C to +70°C
• Rugged, 1500g shock survivability
• Optional mating connectors, power supplies and display indicators
• Custom design and manufacturing capabilities are available to meet customers specific application requirements
