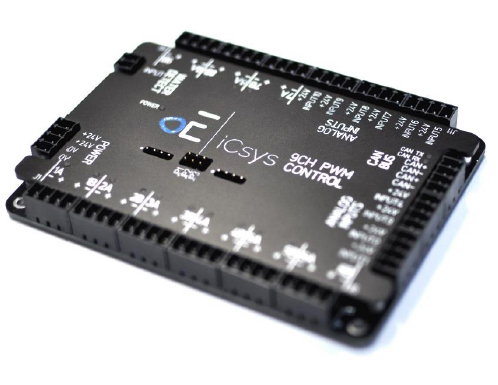

- The PWM CONTROL PCB is capable of controlling 6 to 12 bi-directional proportional and / or solenoid valves and contains analog inputs for pressure / temperature transducers.
The control PCB communicates trough RS232/RS485 or CAN-Bus with control software or hardware. The PCB is powered by a wide voltage range of 10-30VDC.

- Dimension: 120 x 90 x 10mm
- Supply voltage: 10-30VDC
- Pressure tested to 5000m
- Output frequency: 1-2000Hz
- Output Resolution: 16bit (65535)
- Analog input resolution: 16bit (65535)
- Weight: 120g
